Low Cost Digital Signage Solution

4K UHD Signage Player and Dynamic CMS


Celebrating our 10th Anniversary!

MIA Technology, Inc. is a system company in the heart of Silicon Valley providing comprehensive and ease-of-use CMS (content management software) based on Android hardware design to meet this fast-growing digital signage market.

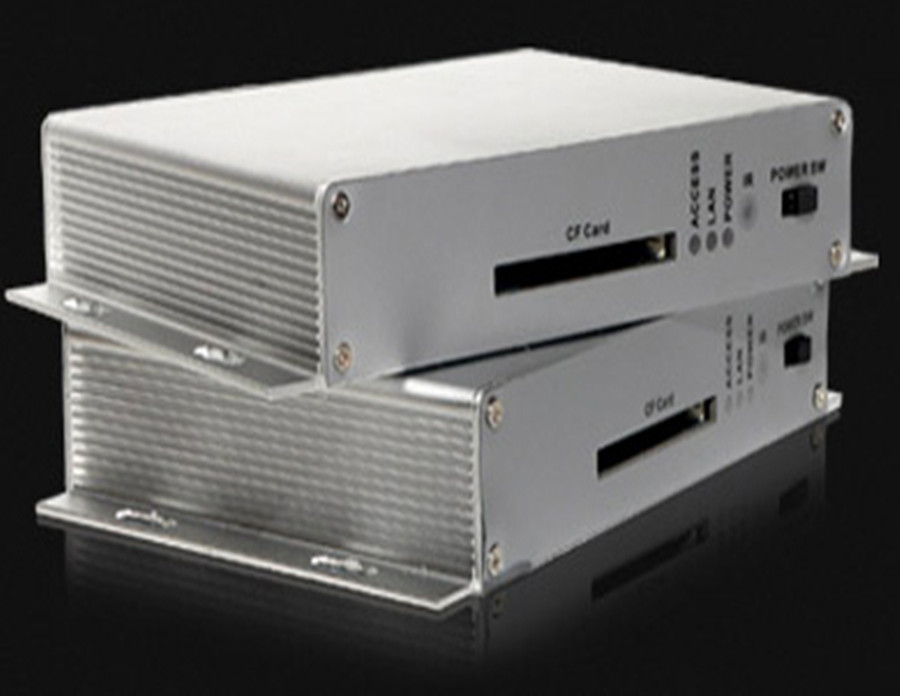

First product launched in June 2007 was a networked signage player NP25 coupled with Windows based software application “CAT (Client Administration Tool)” and cloud based software “icat”. Since then, MIA continues to release upgraded hardware (NP30/NP50/NP100/NP200) and software products for the last 10 years.

Why works with MIA Technology?


  • MIA customers including reseller and end-user are all over the world today.
  • We keep high quality of work and quick response time to serve our customers.
  • We support any scale size of customers from different countries.
  • MIA’s signage solution is reliable and affordable to meet your profit and goal.
  • Our hardware return rate is nearly 0%. 1st generation player NP25 is still running today.
  • Our CMS software is very ease of use, most customers can operate in 10-15 minutes without help document.
  • Our strong engineering team can offer software customization to meet your client’s requirements.

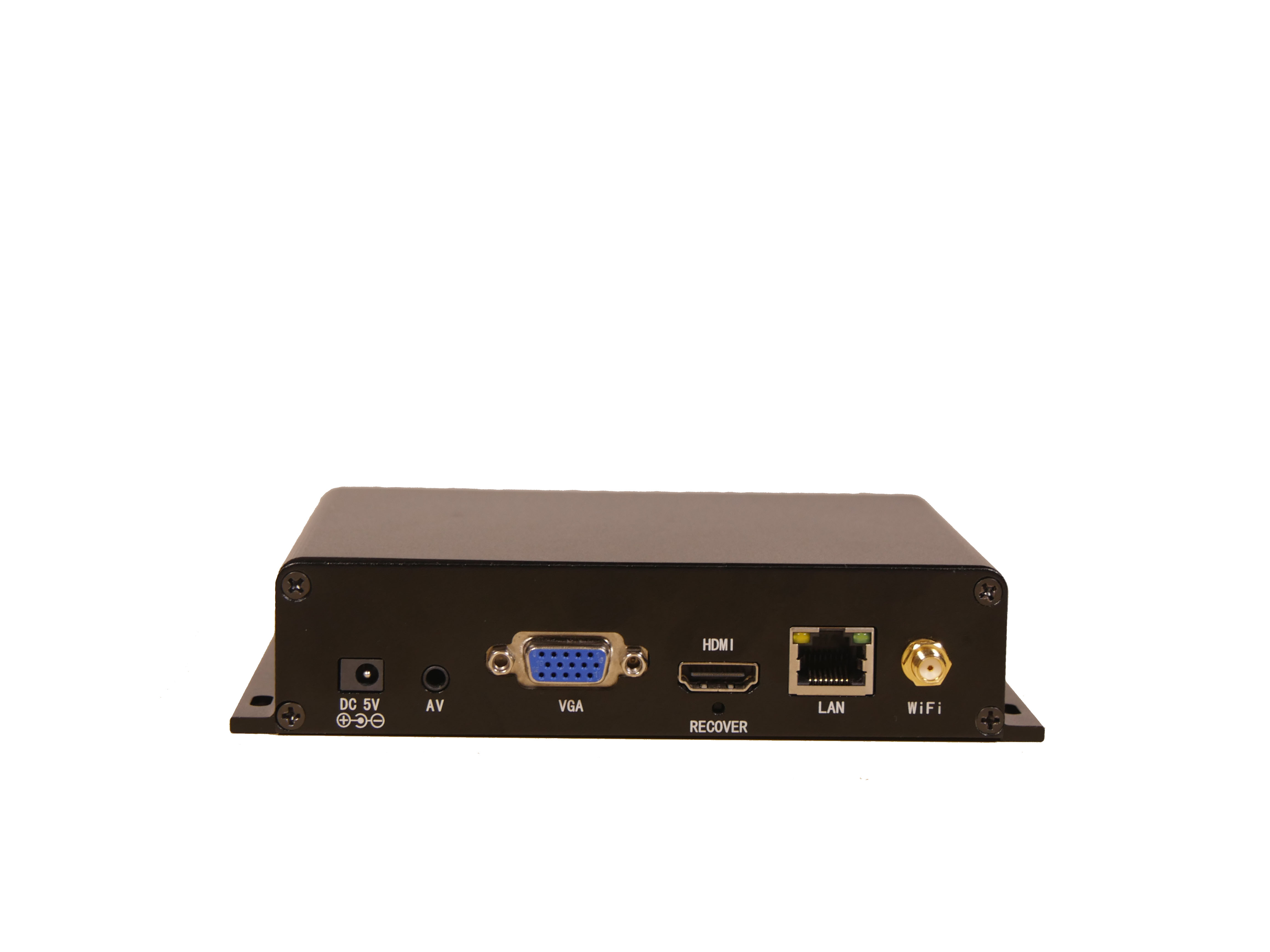

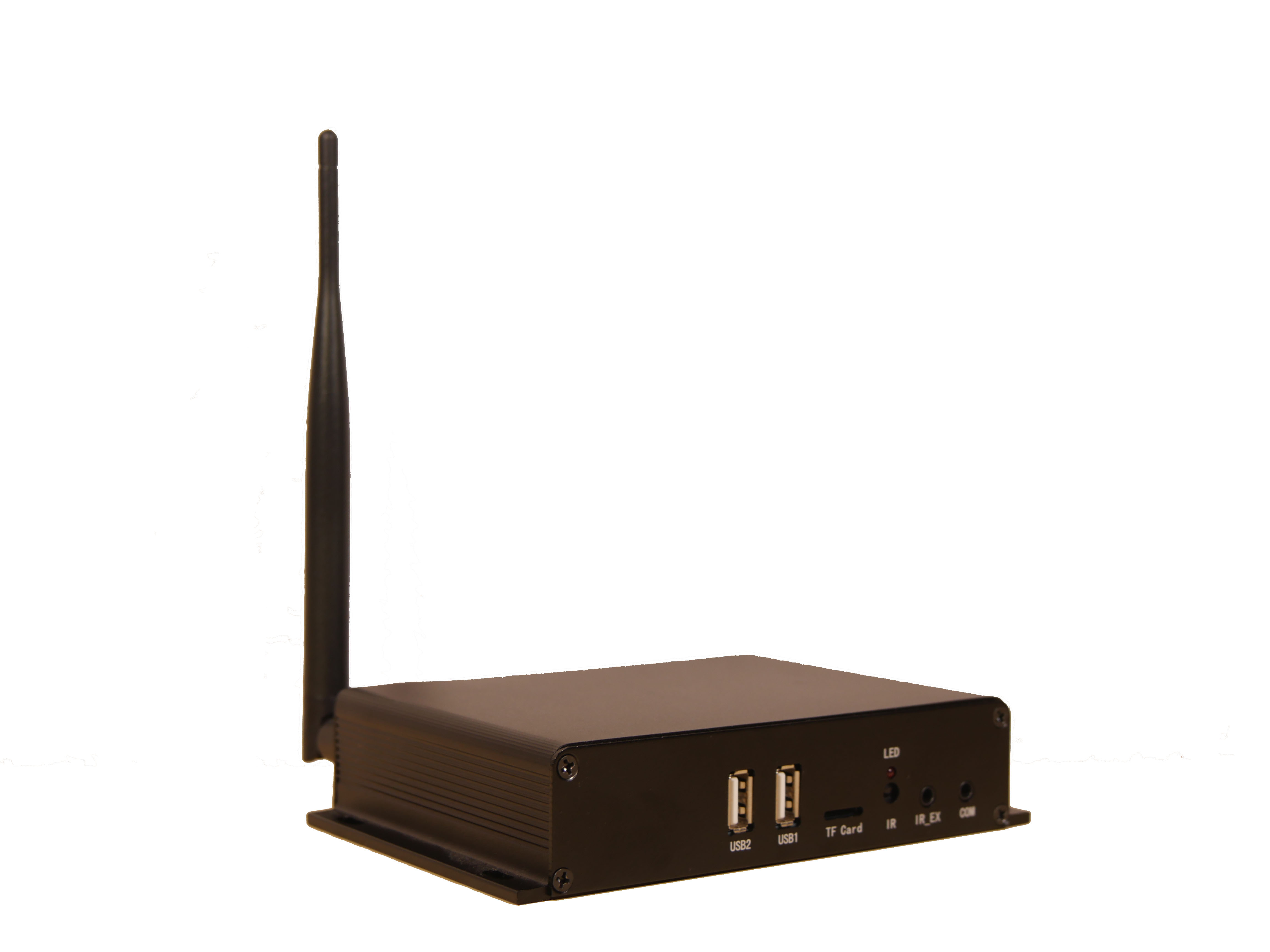

NP200 Android HD Signage Player 这里是图片


NP200 is our first Android based player launched in June of 2015. It takes the advantages of the Android version 4.2 to deliver a reliable and powerful hardware plus rich peripheral interfaces. NP200 is currently main stream product deploying in many customer locations.

  • HDMI/VGA interfaces can access to various 1080p display TVs
  • Support LAN, WIFI and 3G networks., as well as standalone mode.
  • Work well with icat5/icat6 content management system, fitting projects of any scale
  • Capable of running multiple playlists as scheduled, with seamless transitions between videos and images, full-screen and split-screen displays.
  • Supports display of scroll text, date, time, weather and LOGO
  • Support masking feature to allow mask image on top of screen image
  • Support background image to allow other image/video zones on top
  • Support video wall playback synchronization on multiple displays
  • Contents can be updated remotely, or imported or read directly from a USB disk on site
  • Playback and operation logs will be recorded and upload to the management system.
  • Support 3 sets of timers to control TV screen on/off with daily or weekly mode
  • Support interactive multi-touch screens with comprehensive playlists
NP200:Technical Specifications
Hardware Configuration
Board Rockchip RK3188 + ARM Quad Cortex A9 1.8 GHz CPU + ARM Quad Mali-400 MP GPU + HYNIX/SAMSUNG DDR3 1Gbyte (2Gbyte for option) + HYNIX/SAMSUNG NAND FLASH 8GB
Resolution 1080P Full HD
Features
OS
    Android 4.2.2
Contents
  • Video/Image/Text/logo/Date/Time/Weekday/Weather split-screen displayed
  • Support background image and foreground mask image
Playback
  • Contents are obtained via network and stored in local disk for playback on a loop, at a specified time or idle hours.
  • Contents are imported from a USB disk.
  • Play contents stored in a USB disk.
Content Management
  • Cloud based content management software (icat5 and icat6)- customized templates, create playlist, manage playback scheduling, monitoring online players, timer on/off, content upload, captured playback screen, log statistics and many more features.
  • Windows based content management software (wincat5)– features same as icat5.
Media Formats
    Support mainstream media formats, including MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv, MP3, JPG, JPEG, BMP, PNG, GIF
Interfaces
Power Supply
    x1
Video Outputs
  • VAGx1
  • HDMIx1
Audio Output 3.5mm Stereo Jack x1
LAN
    ×1,100/1000M Ethernet
WiFi/Bluetooth
    ×1,WIFI(802.11bgn), BT4.0
3G Module Slot
  • PCIE Slot(3G/4G Module)×1
  • SIM Slot×1
USB2.0
  • USB OTG×1
  • USB HOST×1
IR
    x1
TF Card Slot
    x1
Electrical Parameter
Input Power 5V---2A DC
Other Features
RTC Real Time Clock for time synchronization
Watch Dog WDT circuit included for auto recovery from failure
Housing 15.5cm(W) x 10cm(L) x 3.5cm(H), 500g
Accessories 5V2A power adapter, remote, HDMI cable
UPC

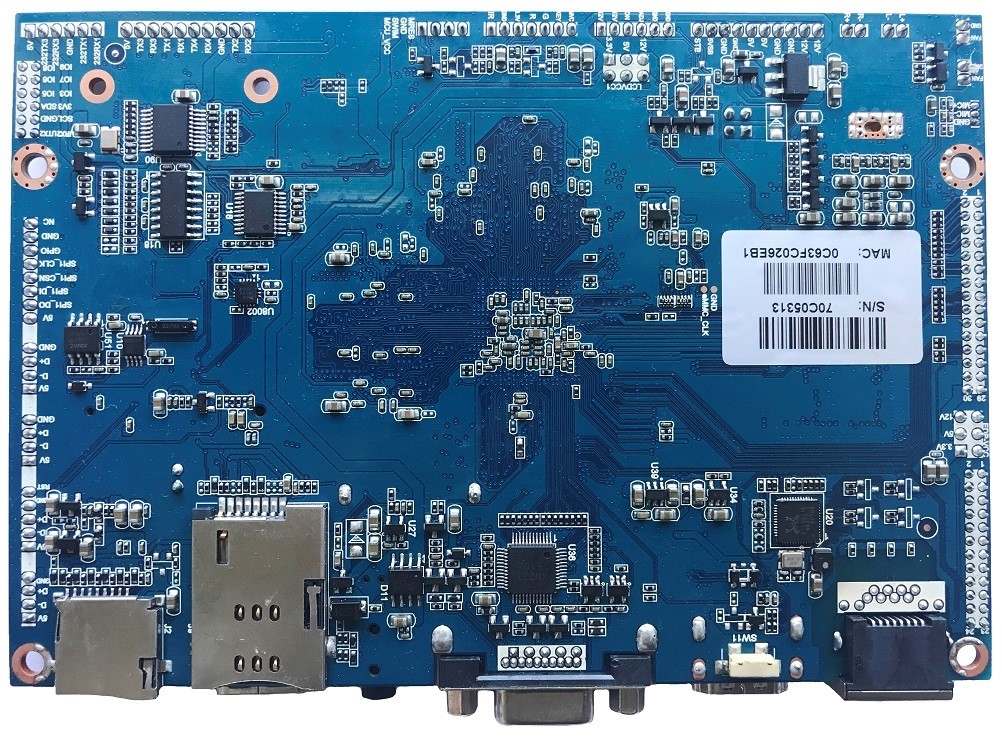

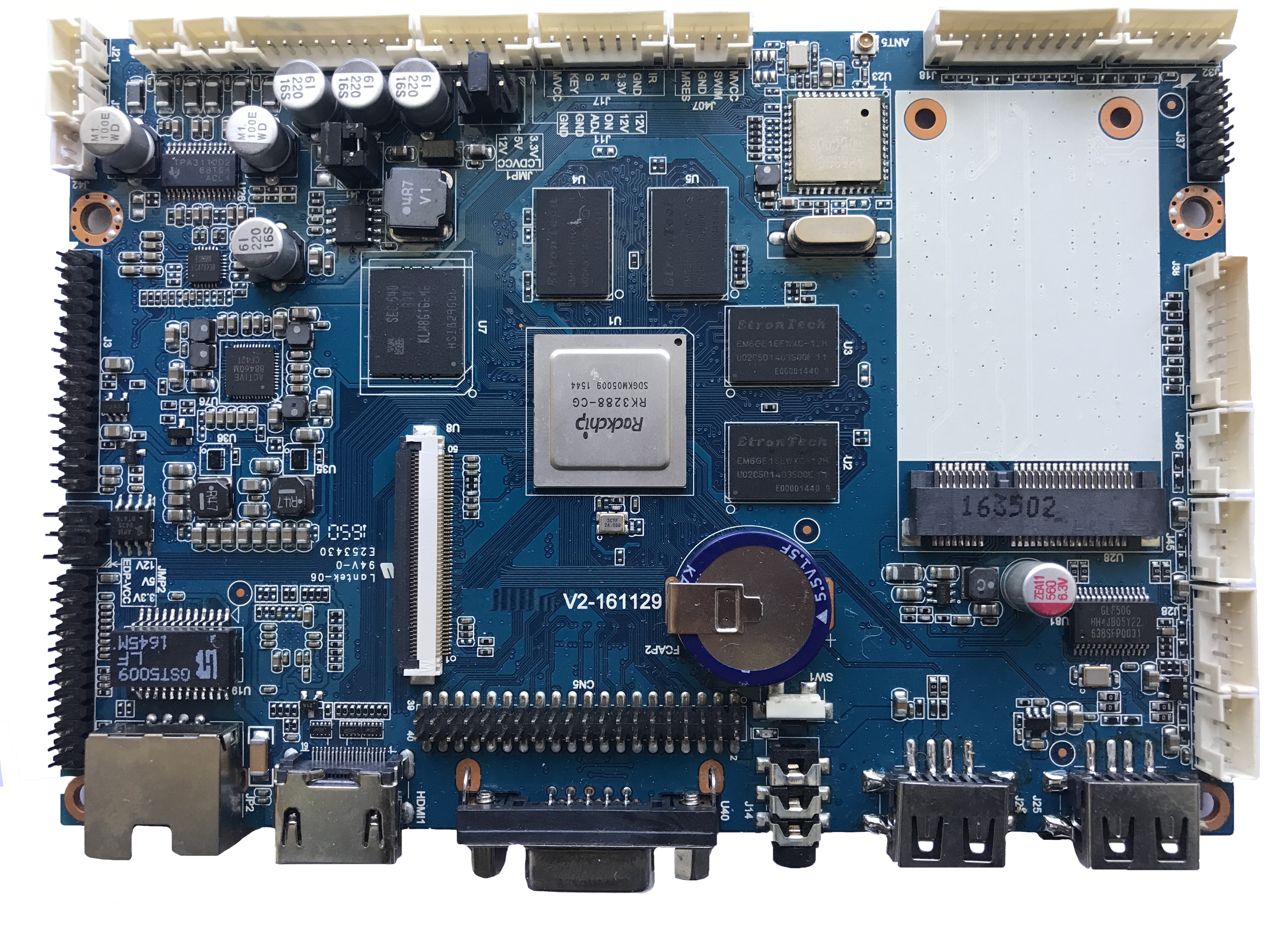

NP300 Android 4K Signage Player 这里是图片


NP300 is the successor of NP200 and state-of-the-art hardware design based on Android v5.1. It’s 100% backward compatible with all features of NP200 plus 4K UHD video, 1080p HDMI input, and HTML5 support. NP300 is cost-effective solution that has built-in hardware including 8GB internal memory, wifi module, LCD driver and interfaces for integrated signage TV.

  • HDMI/VGA interfaces are provided for access of various displays with a resolution up to 4K.
  • Support LAN, WIFI and 3G networks., as well as standalone mode.
  • Work well with icat5/icat6 content management system, fitting projects of any scale
  • Capable of running multiple playlists as scheduled, with seamless transitions between videos and images, full-screen and split-screen displays.
  • Supports display of scroll text, date, time, weather and LOGO
  • With intelligent scheduling, contents can be played on a loop, at a specified time or idle hours, or as instant break-ins.
  • Support network time and synchronization playback
  • Contents can be updated remotely, or imported or read directly from a USB disk on site
  • Playback and operation logs will be recorded and upload to the management system.
  • Auto timed on/off in multiple periods enables unattended operation
  • Both vertical and horizontal displays are supported
  • Support split-screen zones for web access and touch interaction
  • Support multi-touch screens
NP300:Technical Specifications
Hardware Configuration
Board Rockchip RK3288 + ARM Quad Cortex A17 1.8 GHz CPU + ARM Quad Mali-764 MP GPU + HYNIX/SAMSUNG DDR3 2Gbyte + 8GB eMMC memory
Resolution 4K H.264/AVC video decoder. 1080P H.264, H.265(HEVC), MPEG1/2/4, WMV video decoder
Features
OS
    Android 5.1
Contents
  • Video/Image/Text/logo/Date/Time/Weekday/Weather split-screen displayed
  • Support background image and foreground mask image
Playback
  • Contents are obtained via network and stored in local disk for playback on a loop, at a specified time or idle hours.
  • Contents are imported from a USB disk.
  • Play contents stored in a USB disk.
Content Management
  • Cloud based content management software (icat5 and icat6)- customized templates, create playlist, manage playback scheduling, monitoring online players, timer on/off, content upload, captured playback screen, log statistics and many more features.
  • Windows based content management software (wincat5)– features same as icat5.
Media Formats
    Support mainstream media formats, including MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv, MP3, JPG, JPEG, BMP, PNG, GIF
Interfaces
Video Outputs
  • VAGx1
  • HDMIx1
LAN
    ×1,100/1000M Ethernet
WiFi/Bluetooth
    ×1,WIFI(802.11bgn), BT4.0
3G Module Slot
  • PCIE Slot(3G/4G Module)×1
  • SIM Slot×1
USB2.0
  • USB OTG×1
  • USB HOST×1
IR
    x1
TF Card Slot
    x1
HDMI Input
(optional)
    x1, 1080P Input
Other Features
RTC Real Time Clock for time synchronization
Watch Dog WDT circuit included for auto recovery from failure
Electrical Parameter
Input Power 12V---3A DC

Introduction of MIA CMS icat

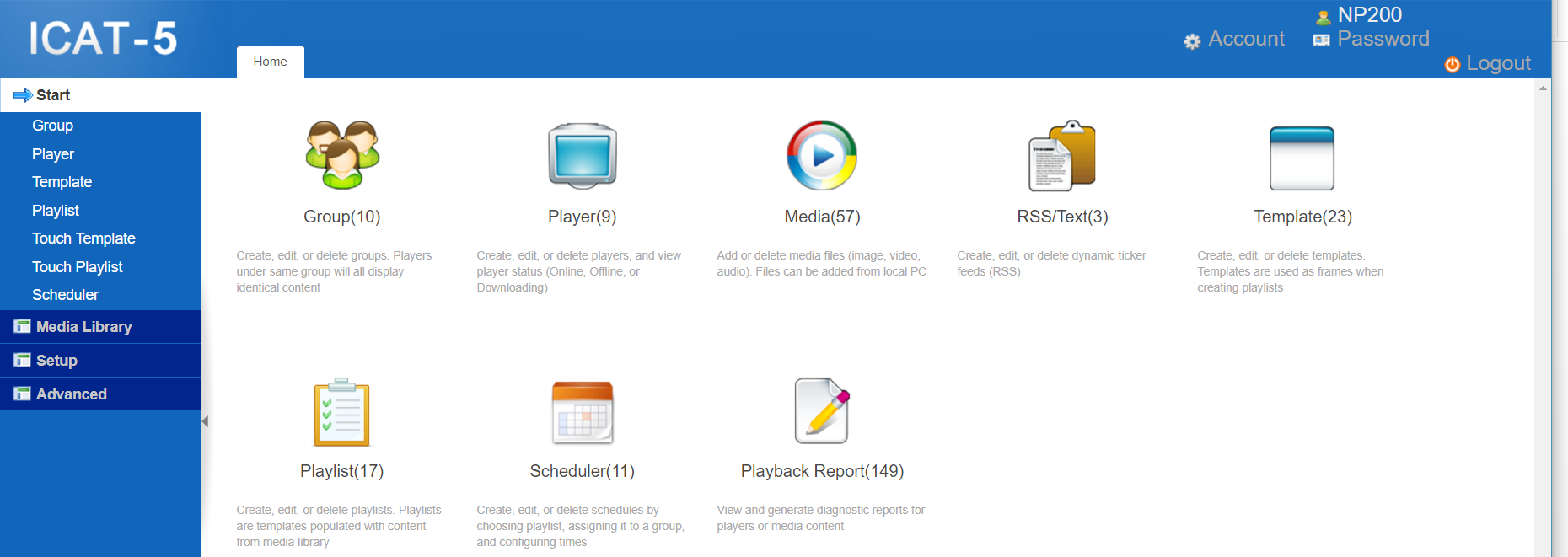

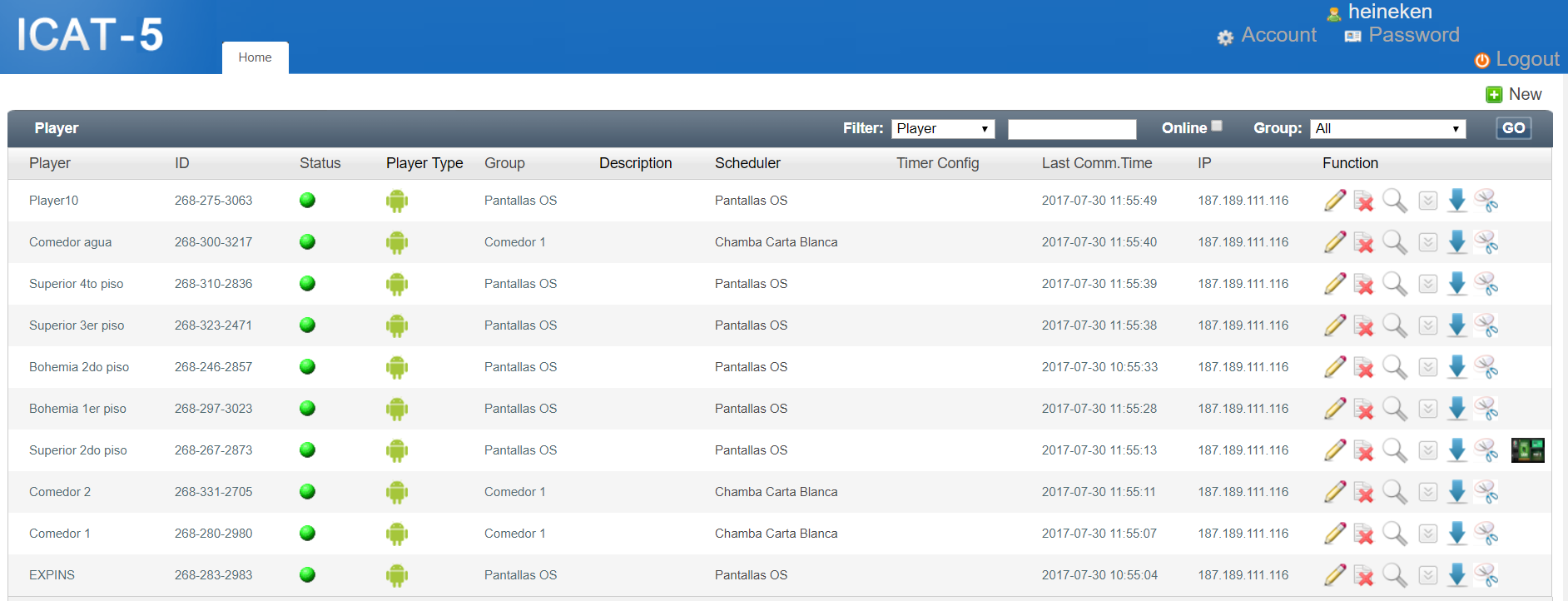

icat (internet client admin tool) is 100% developed by MIA’s software team. icat is a cloud based CMS(content management software) to upload media files, create playlist and playback immediately on your remote players. Our design principle is WYSIWYG(What You See is What You Get). First time user can operate quickly in 10-15 minutes without any help document. MIA offers 3 different icat CMS to meet customer’s requirements.


1. Static CMS - icat5

Step 1: Upload your media files

Step 2: Create template or use standard template

Step 3: Choose your media file as playlist

Step 4: Arrange schedule for your playlist and publish

Once published, player will receive new playlist and download content in the background while playing old playlist. Once new content is loaded completely, then it will switch to new content to play.

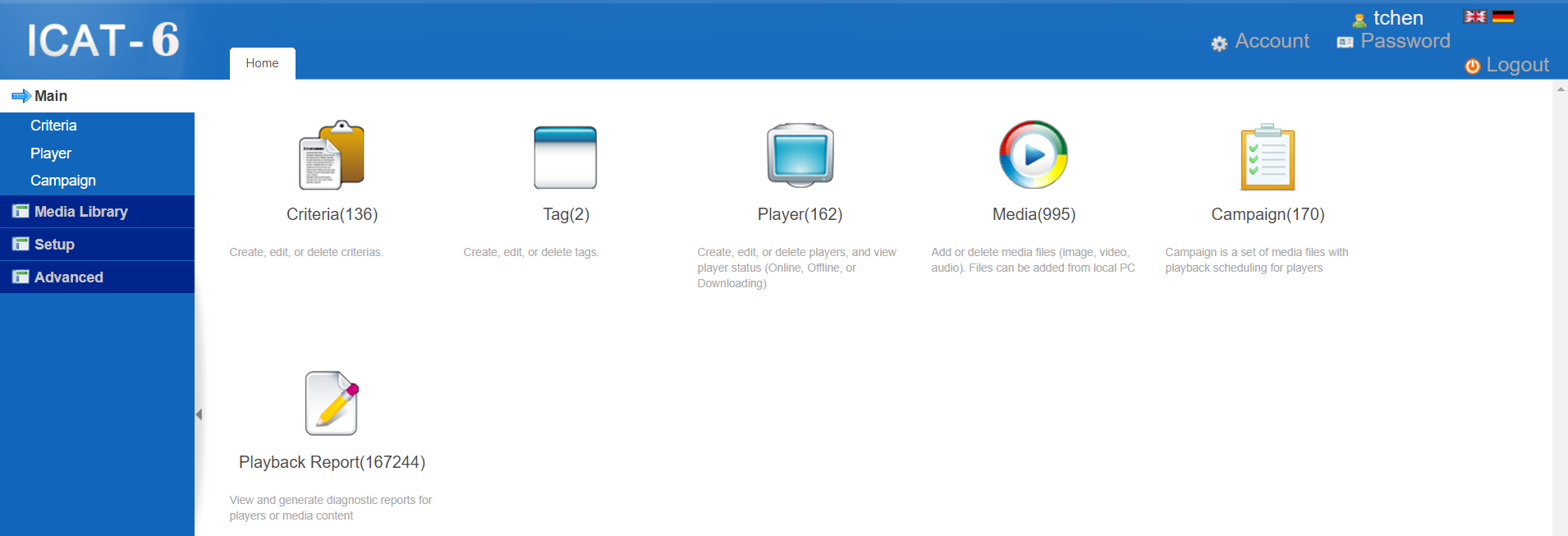

2. Dynamic CMS – icat6

MIA recently launched a dynamic CMS for advertising marketer who prefers to use campaign and file tag concept to generate playlist. This is very useful for large scale of media files, hundreds of players with simple procedure to create right playlist.

Step 1: Upload media file with tag name

Step 2: Create campaign with the following selections then publish

  • Player criteria
  • File tag
  • Campaign time range
  • Campaign count or percentage

icat6 will take all campaigns to generate a well-distributed file order for the daily playlist of each player. icat6 handles very complicated algorithm and calculation, but give easy way for user to get right playlist.



3. Local Network (Intranet) CMS - wincat

Besides icat for internet connection, MIA also developed a Windows based icat “wincat” that can be installed on any x86 PC as local server. Wincat allows single account to manage all intranet players from a PC station. Just open any browser to operate. All the functions are same as icat.

MIA has very strong software team to implement any special features. MIA also provides engineering service to setup and install icat CMS on customer’s server. End customer can manage their own administration for large scale of players and better security.

MIA Technology not only provides a complete standard product, but also takes any customization job including hardware and software changes.

Support

MIA has strong engineering team and staffs in Silicon Valley and China to give you best services, quality and quick turnaround.

Engineering service

MIA Technology has strong engineering team to customize hardware and software for your business requirements. MIA Technology has contract manufacturer in ShenZhen, China to build reliable and world class quality products.
